Product Overview

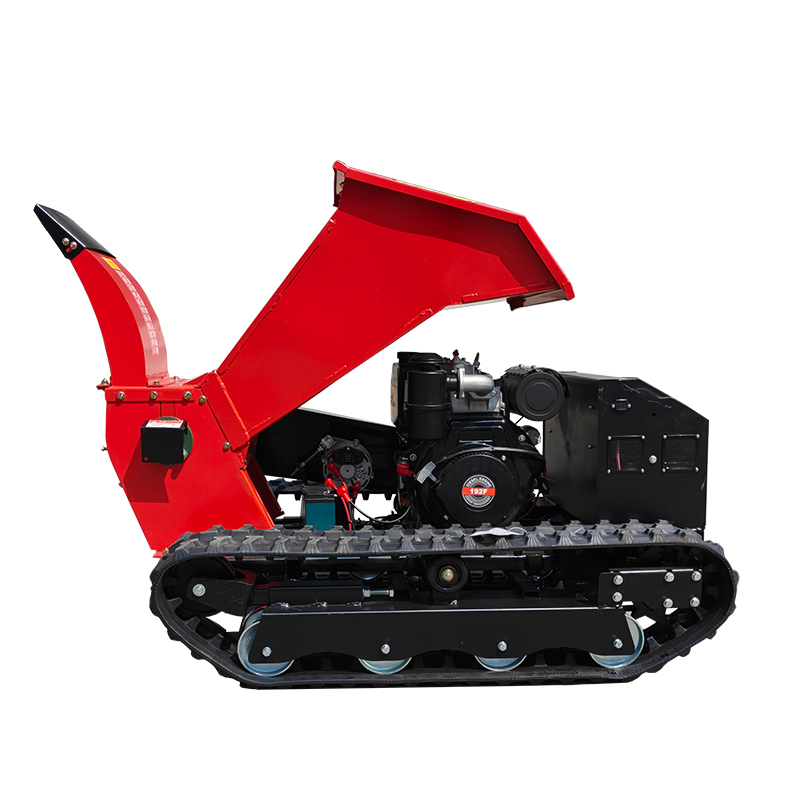

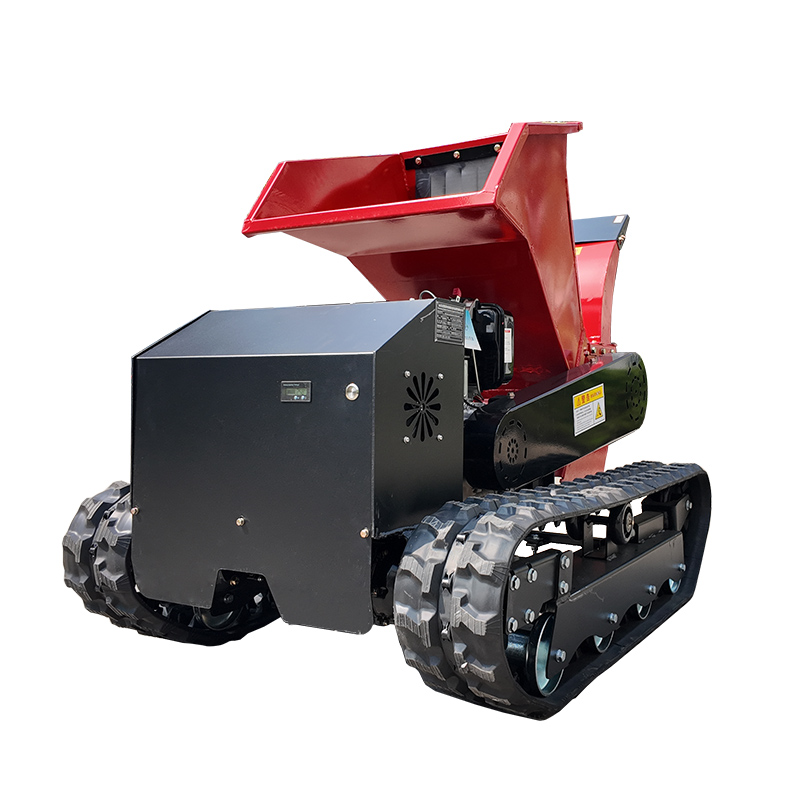

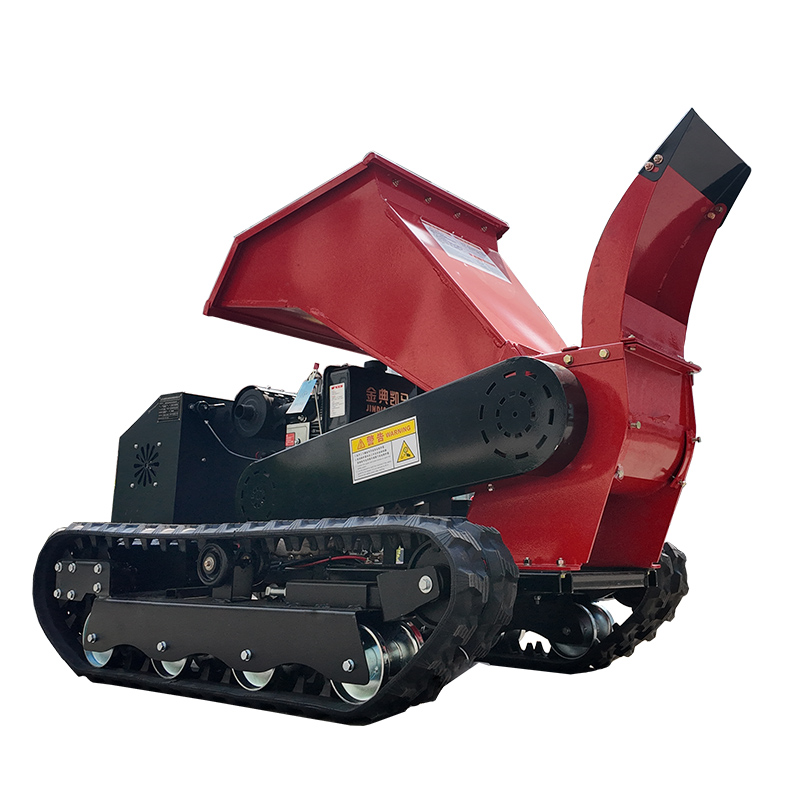

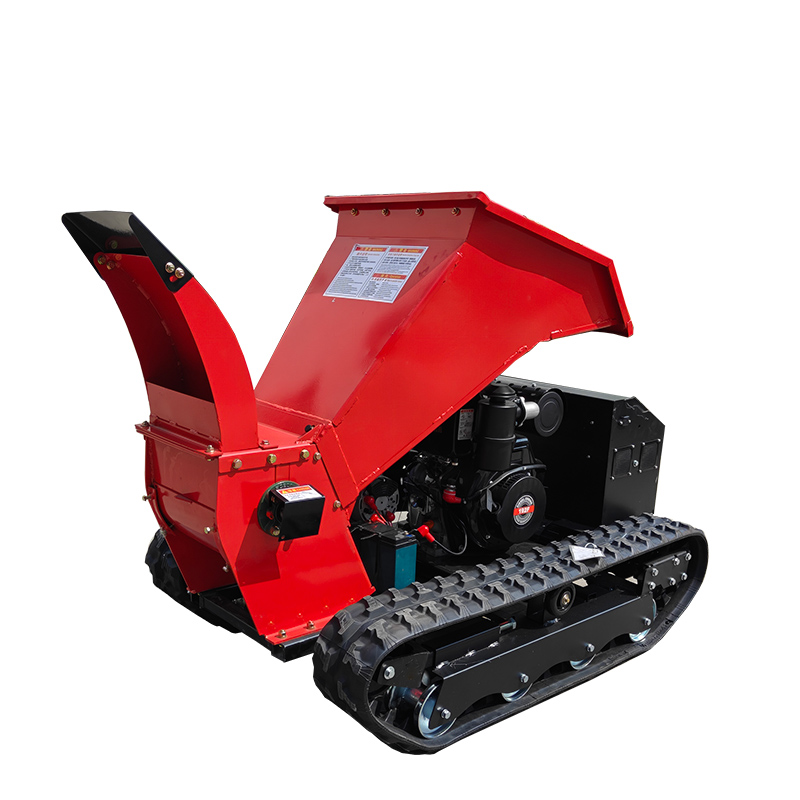

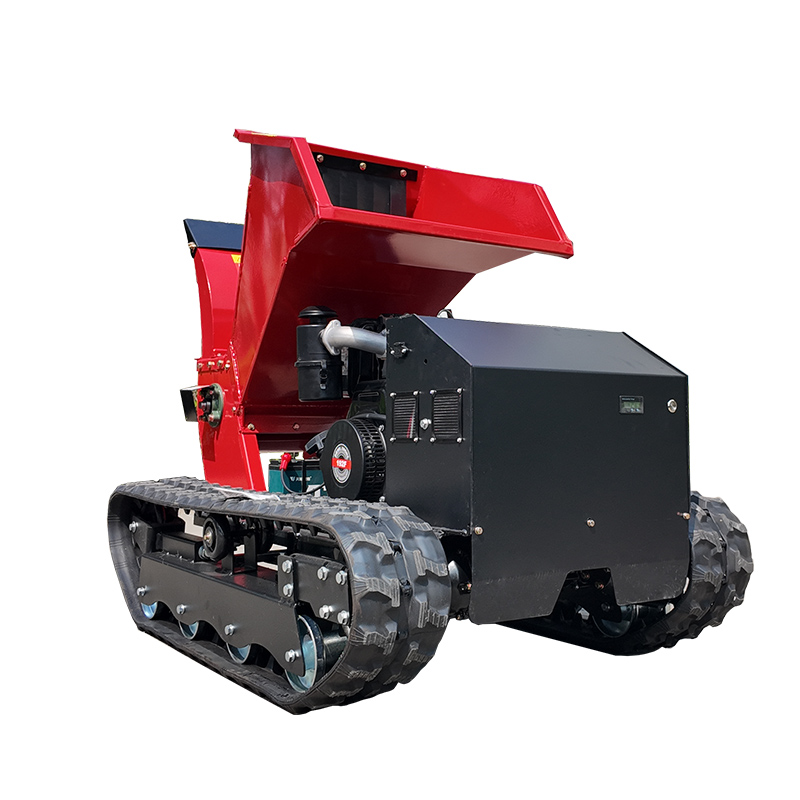

The OBT192-300 tracked tree branch crusher is a self-propelled, all terrain suitable garden/forestry machinery, equipped with diesel power and rubber tracked chassis. It is designed for complex fields such as steep slopes, mountains, orchards, and forests in the wild, and is used to crush and recycle wooden waste such as branches, shrubs, and straw on site.
Specifications
| Packaging specifications | 1720mm*1040mm*1360mm(L*W*H) |
| Overall dimensions | 1680mm*920mm*1200mm(L*W*H) |
| Operation methad | Remote control operation (range of 200 meters) |
| Machine weight | 350KG (bare machine)/445KG (packaged) |
| Power | 15PS |
| Cutting diameter | 80mm |
| Startup method | Electric start |
| Walking speed | 0-5km/h |
| Fuel consumption | 1L/H |
| Walking style | Electric tracked walking |
| Fuel | Diesel/Gasoline |
| Maximum working slope | 50° |
| Engine brand | Changzhou/Loncin |
| Knife shape | 300type (two dynamic and one static) |
Product Features
Strong off-road passability: With a tracked chassis, it has strong grip and can climb steep slopes of 30-50 °. It can walk steadily on muddy, slippery, and bumpy ground, and has flexible transitions.
Powerful and efficient power: optional Changzhou diesel engine or Longxin gasoline engine. Can cut branches with a diameter of 5-10cm and directly crush them into wood chips
Remote control/self-propelled option: safe and convenient operation, away from dust and noise.
Durable and sturdy: Made of national standard steel body and high manganese steel blades, it is impact resistant, wear-resistant, and suitable for moisture and hard materials.
Environmental Protection: No need for external transportation, wood chips can be directly returned to the field to improve soil or used as biomass fuel, reducing costs and meeting environmental protection requirements.
Smart Wireless Remote Control System:Full remote control for start, stop, forward and reverse feeding operations. Operate safely away from flying debris, dust and noise, greatly improving working comfort and operational safety.
Super High Crushing Capacity:Extra-large wide feeding hopper allows quick intake of thick branches, dry hardwood, fresh twigs, vines and mixed garden litter. Fast feeding speed realizes high-volume continuous crushing with outstanding working efficiency.
Heavy-Duty Power Configuration:Equipped with high-performance gasoline/diesel power unit, delivering strong torque and stable power output. Effortlessly crush hard thick branches without jamming or stalling, perfectly fit heavy-duty long-time field operation.
Application Scenarios
Clearing and resource utilization of branches in outdoor areas such as landscaping, orchard pruning, forest nurturing, river slopes, and areas around photovoltaic power plants with no power sources and complex terrain.
Landscape greening scenes: pruning branches in urban parks, residential green belts, scenic courtyards, and centralized crushing of fallen leaves and branches, clean and efficient.
Orchard Agriculture and Forestry Scene: Pruning branches of various fruit trees, tea garden branches, and miscellaneous trees in forest land, crushing them on site, returning them to farmland for fertilization, and cleaning up field waste.
Municipal road engineering: Fast processing of roadside trees, riverbank vegetation, and road greening pruning waste branches on both sides of the highway, suitable for outdoor large-scale operations.
Farm Courtyard Scene: Homestay Farm, Private Courtyard, Manor Green Plant Residual Branch Processing, Easy Handling of Miscellaneous Wood and Miscellaneous Items in the Courtyard.
Forestry barren mountain management: thinning branches, mixed irrigation of barren mountains, crushing and cleaning of vines and shrubs in forest farms, and balancing land reclamation and preparation.
Commercial engineering operations: Large scale processing of green waste by greening engineering teams, environmental sanitation units, and agricultural cooperatives to reduce labor costs.
Biomass recycling: Crushed materials can be used as organic fertilizer raw materials, biomass fuels, and aquaculture bedding materials to achieve waste recycling.
FAQ
Q1. What are the advantages of your company?
A1: Our company has a professional team and a professional production line.
Q2. Can your company provide any other good services?
A2: Yes, we can provide excellent after-sales service and fast delivery.
Q3. Do you accept OEM/ODM?
A3: We provide professional OEM and ODM services according to customers’ design, parameter and market requirements.
Q4. How to operate and maintain the machine?
A4: We provide English user manuals and operation videos. Our team offers professional remote guidance for operation, maintenance and troubleshooting.
Q5. Which shipping port do you use?
A5: Main ports: Qingdao, Ningbo, Shanghai. We can also deliver goods to customers’ designated warehouses.
Q6. What is the MOQ?
A6: 1 unit for trial order. Bulk orders support competitive prices and mixed container loading.
Q7. What is the delivery time?
A7: We have some inventory of materials to ensure that small batch orders can be shipped quickly. For customized orders, the delivery time is usually within 15 working days after receiving payment.
Q8. What are the advantages over manual grass cutting?
A8: Save labor, improve efficiency, enhance safety, stay away from steep slopes, snakes, insects, high temperatures, and sun exposure, significantly reducing labor costs.
Q9. What's the difference from a regular push lawn mower?
A9: No need for human follow-up operation, remote control for effortless and worry-free work, with priority use in hazardous areas.
Q10. Which types of customers are suitable for procurement?
A10: Landscape companies, property greening, orchard growers, engineering slope protection, photovoltaic power stations, overseas wholesale traders.
